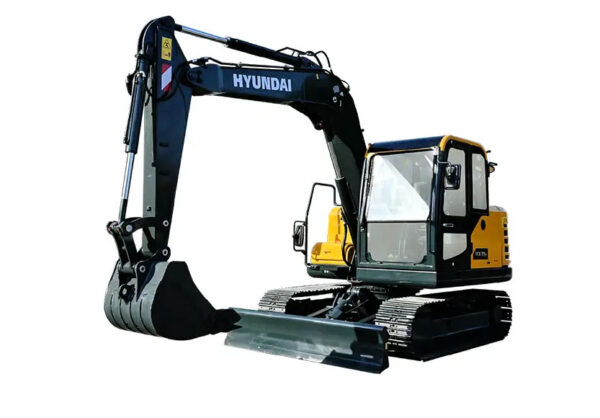

Hyundai HX75S

Request a Quote

"*" indicates required fields

Specifications
Description
Features

Engine Model: 4TNV98-Z

Operating Weight (kg): 7,420

Max Dumping Height (mm): 5,080

Max Digging Depth: 4,015

Bucket Capacity (m3): 0.32

Net Power (kW@rpm): 44.2 @ 2,150rpm

The new HX series excavators are equiped with the latest engine technology boasting fuel efficiency and power.

Engine
> Engine: Yanmar 4TNV98-Z.
> Output is 59.5HP/ 2,100 rpm, the maximum torque of 240.3N·m/ 1,575 rpm.

Hydraulics
> Load sensing system makes the machine smoother and faster.
> Parking brakes ensure more smoother rotation and easy control.

Cab
> In order to reduce the fatigue of the driver’s performance, HX75S provides a comfortable operating environment for the operator.
> Good visibility, spacious cab.
> Integrated Intelligent LCD cluster.

Undercarriage
> X-leg type center frame is integrally welded with reinforced box-section track frames.
> The undercarriage includes lubricate rollers, track adjusters with shock absorbing springs and sprockets, and track chain with triple grouse shoes.

Structure
> Reinforced attachment.
> Even in bad working conditions, the rack can withstand severe impact and pressure during the operation.
> X-type center and steel frame are optimized for better strength, excavators longer life.
