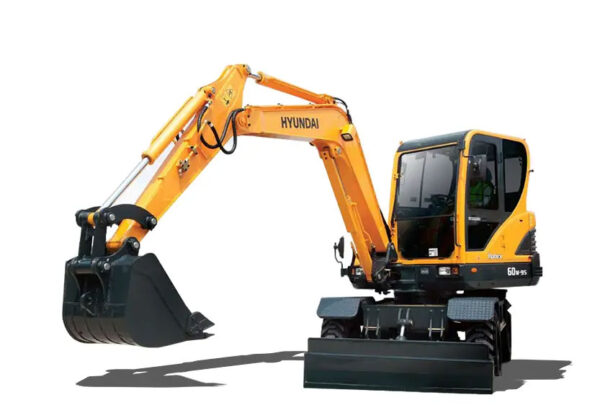

Hyundai R60W-9S

Request a Quote

"*" indicates required fields

Engine Model: Yanmar 4TNV94L

Operating Weight (kg): 5,550

Max Dumping Height (mm): 4,340

Max Digging Depth (mm): 3,500

Bucket Capacity (m³): 0.18

Net Power (kW@rpm): 41 @ 2,400

The Hyundai R60W-9S wheeled excavator ensures outstanding performance on site and has a strong body structure.

Engine
> 9S Series excavators are engineered to be extremely fuel efficient and robust.
> A max power button maximizes machine speed and power for mass production.
> Centralized grease fittings provide faster, easier service and maintenance.
> Engine: Yanmar 4TNV94L – PHYBY.
> Highest engine power in its class.

Excavator Boom Swing
> Booms and arms are welded with a low-stress, full-box section design.
> Variable Swing Boom (Optional).

Hydraulics
> Improved pump flow control reduces flow when controls are not being used to minimize fuel consumption.
> Improved spool valves in the control valve are engineered to provide more precise flow to each function with less effort.
> Other valuable features include a hydraulic damper in the travel pedal, and a hydraulically lubricated swing reducer with a leak-free grease chamber.
> The advanced hydraulic system includes an arm flow summation system, boom holding system and a swing parking brake for smooth and fine control.

Cab
> Convenient operator features include a suspension seat, excellent visibility, and variable storage space for advanced operator comfort.
> ISO Standard Cabin.
> Radio and aircon standard.
> The cab is roomy and ergonomically designed, for reduced noise and good visibility.
> The newly designed LED cluster provides current information, including engine RPM, engine coolant, fuel level. And electric components.

Undercarriage
> Reinforced lower frame and strengthened fenders provide exceptional strength and longer service life to withstand tough working conditions.
