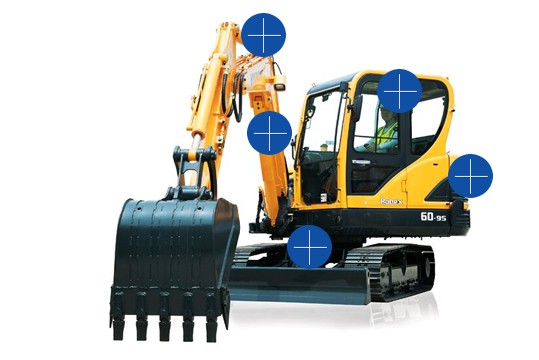

R60-9S Mini Excavator

The Hyundai R60-9S Mini Excavator offers a comfortable operating cabin, easy and simple maintenance as well as new technologies designed to improve performance. This model is fast, smooth and easy to control which keeps the operator working productively.

Features

R60-9S

Engine

  • 9S Series excavators are engineered to be extremely fuel efficient and robust
  • A newly designed full-open type engine hood makes service convenient
  • Centralized grease fittings provide faster, easier service and maintenance
  • Engine: Yanmar 4TNV94L
  • Water cooled, 4 cycle Diesel, 4-cylinder in line, direct injection
R60-9S
Boom/Dipper Cab Hydraulics Undercarriage Engine

Boom/Dipper

Variable Swing Boom (Optional)

Cab

  • Convenient operator features include a suspension seat, excellent visibility, and variable storage space for advanced operator comfort
  • ISO Standard Cabin
  • Standard aircon and radio
  • The cab is roomy and ergonomically designed, with reduced sound levels and good visibility

Hydraulics

  • Hydraulic damper in the travel pedal, and a hydraulically lubricated swing reducer with a leak free grease chamber
  • Improved pump flow control reduces flow when controls are not being used to minimize fuel consumption
  • Improved spool valves in the control valve are engineered to provide more precise flow to each function with less effort
  • The advanced hydraulic system includes an arm flow summation system, boom holding system and a swing parking brake for smooth control

Undercarriage

  • The undercarriage includes lubricated rollers, track adjusters with shock absorbing springs and sprockets, and track chain with triple grouser shoes (steel tracks optional)
  • X-leg centre frame and reinforced box section track frame provide exceptional strength and longer service life to withstand tough working conditions

Engine

  • 9S Series excavators are engineered to be extremely fuel efficient and robust
  • A newly designed full-open type engine hood makes service convenient
  • Centralized grease fittings provide faster, easier service and maintenance
  • Engine: Yanmar 4TNV94L
  • Water cooled, 4 cycle Diesel, 4-cylinder in line, direct injection

Model Specifications

Engine Model

Yanmar 4TNV94L

Max Dumping Height (mm)

4,050

Bucket Capacity (m³)

0.18

Operating Weight (kg)

5,650

Max. digging depth (mm)

3,820

Net Power (kW@rpm)

39 @ 2,200
