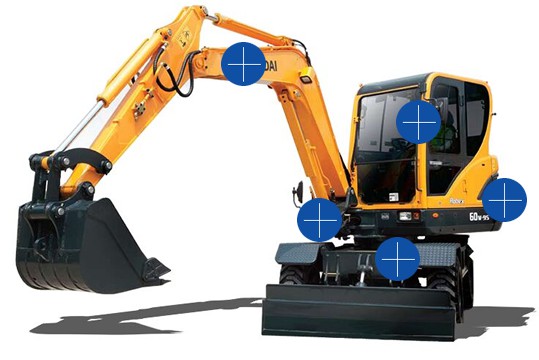

R60W-9S Wheeled Excavator

The Hyundai R60W-9S wheeled excavator ensures outstanding performance on site and has a strong body structure.

Features

R60W-9S

Engine

  • 9S Series excavators are engineered to be extremely fuel efficient and robust
  • A max power button maximizes machine speed and power for mass production
  • Centralized grease fittings provide faster, easier service and maintenance
  • Engine: Yanmar 4TNV94L - PHYBY
  • Highest engine power in its class

R60W-9S
Excavator Boom Swing Cab Engine Hydraulics Undercarriage

Excavator Boom Swing

Booms and arms are welded with a low-stress, full-box section design
Variable Swing Boom (Optional)

Cab

  • Convenient operator features include a suspension seat, excellent visibility, and variable storage space for advanced operator comfort
  • ISO Standard Cabin
  • Radio and aircon standard
  • The cab is roomy and ergonomically designed, for reduced noise and good visibility
  • The newly designed LED cluster provides current information, including engine RPM, engine coolant, fuel level. And electric components

Engine

  • 9S Series excavators are engineered to be extremely fuel efficient and robust
  • A max power button maximizes machine speed and power for mass production
  • Centralized grease fittings provide faster, easier service and maintenance
  • Engine: Yanmar 4TNV94L - PHYBY
  • Highest engine power in its class

Hydraulics

  • Improved pump flow control reduces flow when controls are not being used to minimize fuel consumption
  • Improved spool valves in the control valve are engineered to provide more precise flow to each function with less effort
  • Other valuable features include a hydraulic damper in the travel pedal, and a hydraulically lubricated swing reducer with a leak-free grease chamber
  • The advanced hydraulic system includes an arm flow summation system, boom holding system and a swing parking brake for smooth and fine control

Undercarriage

Reinforced lower frame and strengthened fenders provide exceptional strength and longer service life to withstand tough working conditions

Model Specifications

Operating Weight (kg):

5,550

Max Digging Depth (mm):

3,500

Max Dumping Height (mm):

4,340

Bucket Capacity (m³):

0.18

Net Power (kW@rpm):

41 @ 2,400
