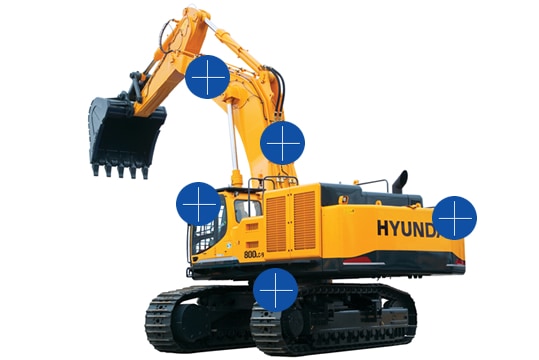

R850LC-9 Tracked Excavator

The Hyundai R850LC-9 tracked excavator is suitable for large construction and mining sites. Operator comfort, reliability and durability on difficult terrain is key.

Features

R850LC-9

Engine

  • Computer Aided Power Optimization System (Power: Power / Standard / Economy, Work and Custom User modes)
  • Electronically controlled for optimum fuel to air ratio and clean, efficient combustion
  • Engine: Cummins QSX15
  • Face Shovel configuration available
  • Ground-line access to filters, lube fittings, fuses, machine computer components and wide open compartments makes service more convenient
  • New innovations like two-stage auto decel system and the new economy mode help to conserve fuel and reduce the impact on the environment
R850LC-9
Excavator Boom Swing Cab Engine Hydraulics Undercarriage

Excavator Boom Swing

  • Booms and arms are welded with a low-stress, full-box section design
  • Sacrificial Wear Plate

Cab

  • 9S Series cab have easily adjustable seat, console and armrest to ensure operator comfort
  • Enlarged cab with improved visibility
  • ISO Standard Cabin
  • New Color 7" LCD display with easy to read digital gauges
  • Radio and aircon standard

Engine

  • Computer Aided Power Optimization System (Power: Power/Standard/Economy, Work and Custom User modes)
  • Electronically controlled for optimum fuel to air ratio and clean, efficient combustion
  • Engine: Cummins QSX15
  • Face Shovel configuration available
  • Ground-line access to filters, lube fittings, fuses, machine computer components and wide open compartments makes service more convenient
  • New innovations like two-stage auto decel system and the new economy mode help to conserve fuel and reduce the impact on the environment

Hydraulics

  • Advanced CAPO(Computer Aided Power Optimization) system to select power mode
  • Improved control valve design for added efficiency and smoother operation
  • New auto boom and swing priority system for optimum speed
  • New auto power boost feature for additional power when needed

Undercarriage

  • 700mm Grouser
  • Long Undercarriage (9 rollers)
  • Sealed track chain (urethane seals)
  • Tapered side frames for debris clean-out
  • The strengthened undercarriage is designed for excellent production at quarries and mines

Model Specifications

Operating Weight (kg):

84,000

Max Digging Depth (mm):

7,240

Max Dumping Height (mm):

7,500

Bucket Capacity (m³):

4.53

Net Power (kW@rpm):

366 @ 1,800
