McCloskey: Quarry & Mining Equipment

McCloskey equipment is suitable for many different applications. This range offers models specifically suited for the harsh conditions on mining and quarry sites. You can choose from a variety of options that fit your specific mining & quarry needs. View these models below by clicking the relevant tabs.

J45_4

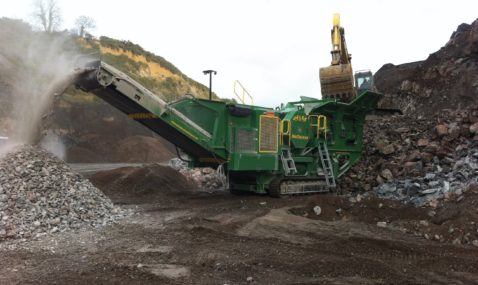

J45 Jaw Crusher
Engine 350 HP (261 kw) Diesel
Feed Opening 1118mm (45”) x 685mm (27”)
Crusher Speed 300 rpm
Grizzly Feeder 4240mm (13’ – 11”) x 1064mm (41.9″)
Hopper Volume 6.8 (8.9yd³)
Belt Width – Main Conveyor 1050mm (42″)
Stockpile Height – Side Conveyor 8′ 2.3″ (2.5m)
View Model

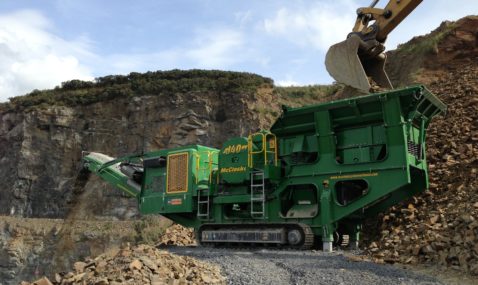

J40_1
J45R Jaw Crusher
Engine 350 HP (261 kw)
Feed Opening 1140mm (45″) x 688mm (27″)
Crusher Speed 300 rpm
Grizzly Feeder 4240mm (13’ – 11”) x 1064mm (41.9″)
Hopper Volume 5.6m³ (7.3yd³)
Belt Width – Main Conveyor 1050mm (42″)
Stockpile Height – Side Conveyor 2.50m (8′ – 2.3″)
View Model

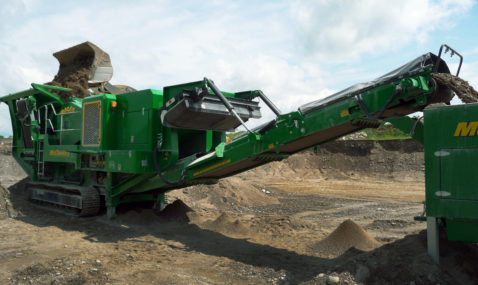

crushers-J50-1-jaw-crusher-image
J50 Jaw Crusher
Engine 350 HP (261 kW) Diesel
Feed Opening 1270mm (50″) x 735mm (29″)
Crusher Speed 280 rpm
Grizzly Feeder 4450mm (175″) x 1164mm (45.8″)
Hopper Volume 6.3m³(8.2yd³)
Stockpile Height – Main Conveyor 13′ 11″ (4.25m)
Stockpile Height – Side Conveyor 8′ 6″ (2.58m)
View Model

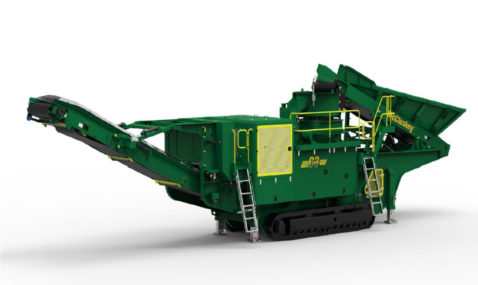

C38 4
C38 Cone Crusher
Engine 350HP (261kw) Diesel
Cone Telsmith 38SBS
Feed Opening 914mm (36″)
Close Side Setting Adjustment Hydraulic
Feeder Opening Width 800mm (31.5″)
Stockpile Height – Main Conveyor 3230mm (10′-7″)
View Model

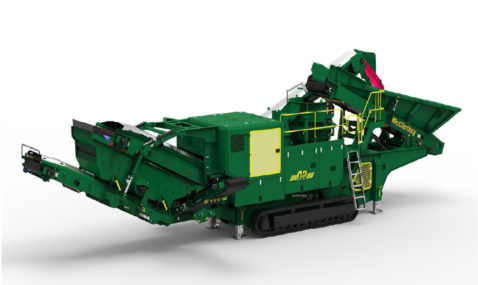

C38R_1
C38R Cone Crusher
Engine 350 HP (261 kW) CAT C9
Cone Telsmith 38SBS
Feed Opening 914mm (36″)
Closed Side Setting Adjustment Hydraulic
Feeder Opening Width 800mm (31.5″)
Stockpile Height – Main Conveyor 2965mm (9′-9″)
View Model

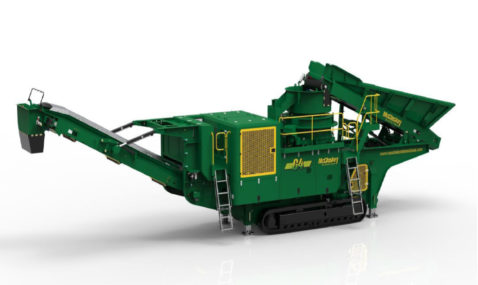

C44_1
C44 Cone Crusher
Engine 440 HP (328 kW) Diesel
Cone Telsmith 44SBS
Feed Opening 914mm (36″)
Closed Side Setting Adjustment Hydraulic
Feeder Opening Width 765mm (30″)
Stockpile Height – Main Conveyor 3250mm (10′-8″)
View Model
S130_1

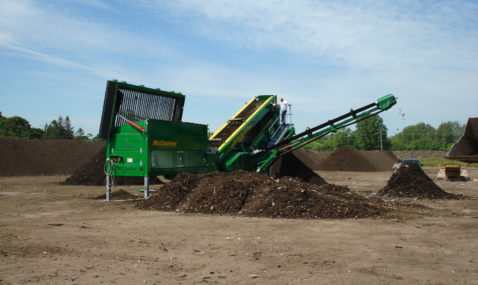

S130 Screener
Engine 100 HP (75 kW)
Screenbox Top Deck 4270mm (14′) x 1524mm (5′)
Screenbox Bottom Deck 3660mm (12′) x 1524mm (5′)
Main Conveyor Belt Width 1050mm (42″)
Stockpile Height Tail Conveyor 3871mm (12′ – 8″) – Track Model 4139mm (13′-7″)- Wheel Model
Stockpile Height Side Conveyor 4600mm (15′-1″) – Track Model 4870mm (15′ – 11″) – Wheel Model
View Model
S190_1

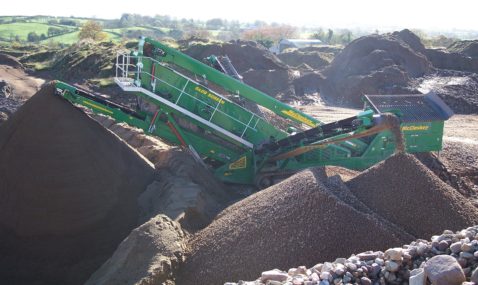

S190 Screener
Tracked Screener S190 Double Deck
Engine 130 Hp (97 kW)
Screenbox Top Deck 5′ x 4′ side tension – 5 off
Screenbox Bottom Deck 5′ x 6′ end tension – 3 off
Main Conveyor Belt Width 1050mm (42″)
Stockpile Height Tail Conveyor 4638mm (15′ – 3″)
Stockpile Height Side Conveyor 5100mm (16′ – 9″)
View Model

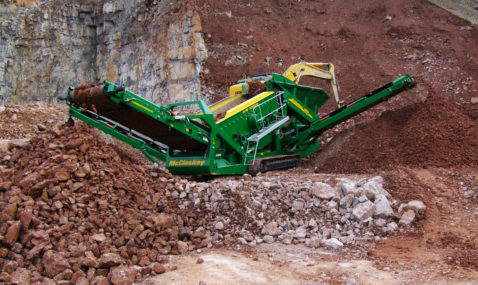

R155_5
R155 Screener
Engine 127 HP Diesel
Screenbox Top Deck 4.880m (16′) x 1.525m (5′)
Screenbox Bottom Deck 4.575m (15′) x 1.525m (5′)
Main Conveyor Belt Width 1400mm (55″)
Stockpile Height Tail Conveyor 2.77m (9′-11″) – 3.75m (12′-3″)
Stockpile Height Side Conveyor 3.47m (11′-5″) – 3.96m (13′)
View Model

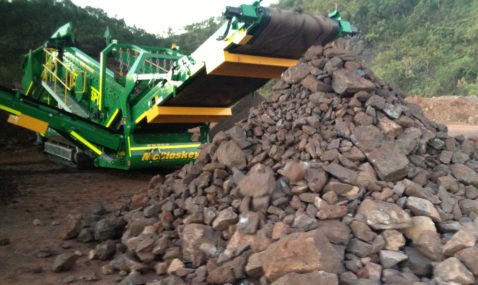

R230_12
R230 Screener
Engine 225 HP (168kw) Diesel
Screenbox Top Deck 6.1m (20′) x 1.83m (6′)
Screenbox Bottom Deck 5.49m (18′) x 1.83m (6′)
Feed Conveyor Belt Width 1500mm (60′)
Stockpile Height Tail Conveyor 3.83m (12′ – 6″)
Stockpile Height Fine Product Side Conveyor 4.10m (13′-5.3″)
Stockpile Height Mid Product Side Conveyor 3.66m (12′)
View Model

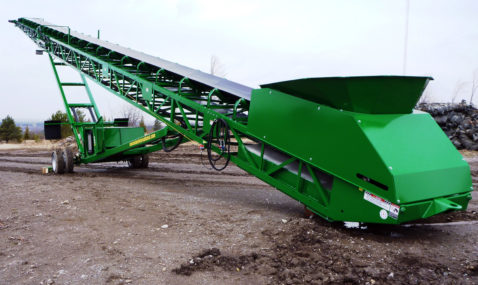

ST100_3
ST100 Wheeled Stacker
Engine 90 Hp (67 kW)
Belt Length 100′ (30.48m)
Belt Width 36″ (900mm)
Stockpile Height 12.7 m (41 ” – 10″)
Stockpile Capacity 5030 yds³ (3850m³)
View Model
ST80_2

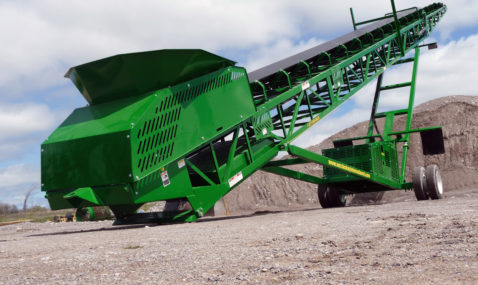

ST80 Wheeled Stacker
Engine 49 Hp (36.5 kW)
Belt Length  80′ (24.38m)
Belt Width 36″ (900mm)
Stockpile Height 31′ 1″ (9.47m)
Stockpile Capacity 2035 yds³ (1556m³)

View Model

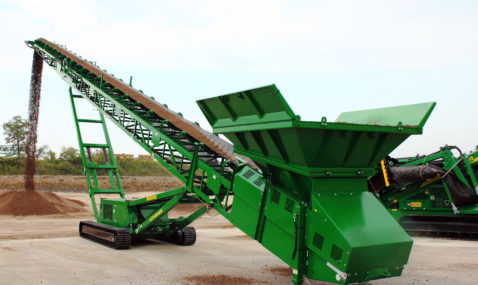

ST100T
ST100T Tracked Stacker
Engine 90 Hp (67 kW)
Belt Length 100′ (30.48m)
Belt Width 36″ (900mm)
Stockpile Height 41’ 10” (12.7m)
Stockpile Capacity  5030 yds³ (3850 m³)
View Model
OLYMPUS DIGITAL CAMERA

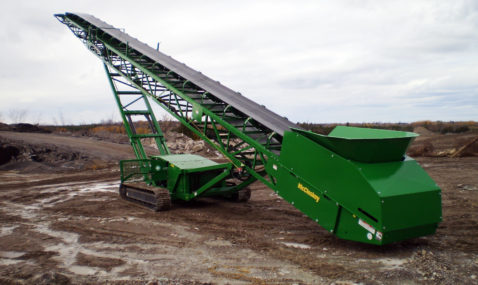

ST80T Tracked Stacker
Engine 49 Hp (36.5 kW)
Belt Length 80′ (24.38m)
Belt Width 36″ (900mm)
Stockpile Height 31′ 1″ (9.47m)
Stockpile Capacity 2035 yds³ (1556 m³)
View Model
TF80_1

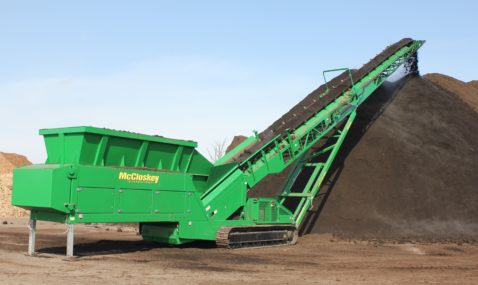

TF80 Feeder Stacker
Engine 100hp (75kw)
Stockpile Height 42′ 6″ (12.94m)
Stockpile Capacity 5,280 cu. yds.(4,037 cu.m.)
Conveyor Length 19.35m (80′)
Belt 48″ x 80′ (1220mm x 24.38m)
View Model
OLYMPUS DIGITAL CAMERA
ST80TF Feeder Stacker
Engine 90hp (67kw)
Stockpile Height 31′ 1″ (9.47m)
Stockpile Capacity 1,556 cu. yds. (2,035 cu.m.)
Conveyor Length 24.38m (80′) drum centre
Belt 36″ x 80′ (900mm x 24.38m)
View Model
TF80_1
ST100TF Feeder Stacker
Engine 100hp (75kw)
Belt 36″ x 100′ (900mm x 30.48m)
Stockpile Height 41′ 10″ (12.77m)
Stockpile Capacity 4927 cu. yds. (3,766.cu.m.)
Conveyor Length 30.48m (100′) drum centre
View Model

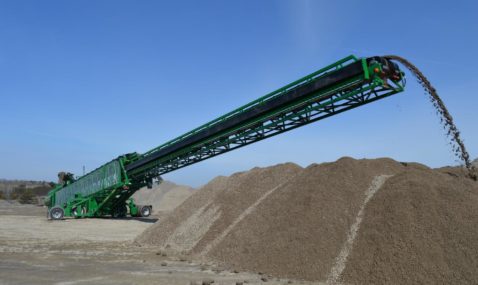

Low Res - SDX130 Front Long View Soil Stockpiling March 29, 2016 Working - Copy

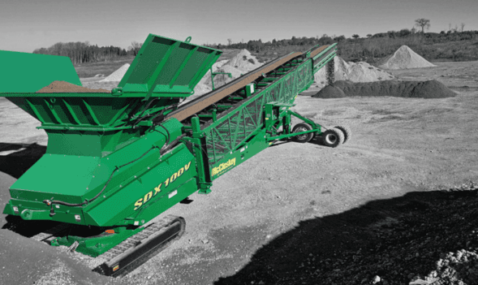

SDX 100 Telescoping Stacker
Engine – Power Unit 100 Hp (75 kW)
Stockpile Height (max) 42′-5′ (12.93m)
Working Length (max) 100′ (30.48m)
Transport Length  57’ 3” (17.45m)
Transport Height 13’ 6” (4.12m)
Belt Width 36″ (900mm)
View Model
SDX-130 Desegregating Telescopic Stacker - McCloskey 2015
SDX130 Telescoping Stacker
Engine – Power Unit 127 Hp (96 kW)
Stockpile Height (max) 50′-5″ (15.37m)
Working Length (max) 130′ (39.61m)
Transport Length 75′ 4″ (22.97m)
Transport Height 13′ 6″ (4.12m)
Belt Width 36″ (900mm)
View Model
SDX+Telescoping+Conveyor
SDX150 Telescoping Stacker
Engine – Power Unit 127 Hp (96 kW)
Stockpile Height (max) 55′ (16.76m)
Working Length (max) 150′ (45.72m)
Transport Length 26.01m (85’-4”)
Transport Height 4.24m (13’-5”)
Belt Width 36″ (914mm)
View Model
