SOOSAN: Quarry & Mining Equipment

The SOOSAN range of equipment features hydraulic breakers and quick couplers suitable for the toughest mining & quarry applications. View these models by clicking the below tabs.

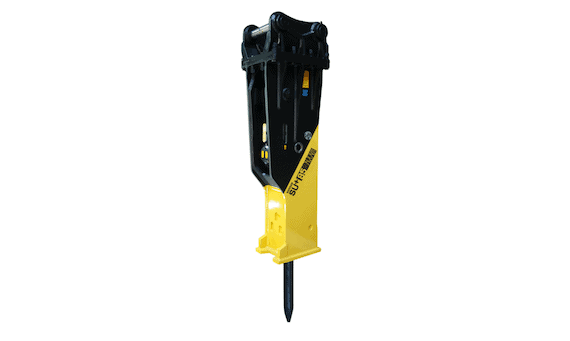

SU85
Required Excavator Tonnage: 18 – 26
Operating Weight (kg): 1,812
Moil Diameter (mm): 135
Striking Rate (bpm): H-Mode: 400-550

L-Mode: 500-700

View Model
SB121
Operating Weight (kg) 2965
Oil Flow (l/min) 180-240
Operating pressure (kg/cm²) 160-180
Impact rate (BPM) 300-450
85dB(A) radius (m) 26-35
Applicable carrier weight (ton) 28-35
View Model

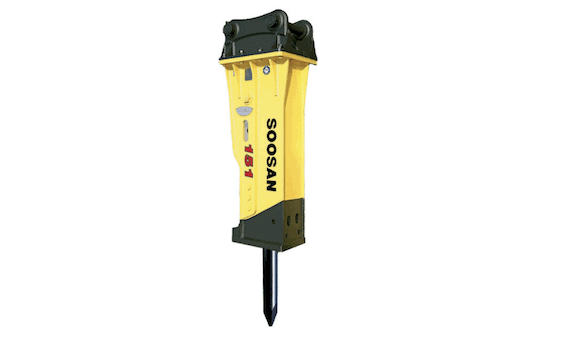

SB151
Operating Weight (kg) 4046
Oil Flow (l/min) 210-290
Operating pressure (kg/cm²) 160-180
Impact rate (BPM) 200-350
Applicable carrier weight (ton) 40-55
View Model
SDQ08P
Operating weight (kg) 375
Applicable Carrier (ton) 18~26
Applicable pin distance (mm) 455~485
Oil Flow (l/min) 10~20
Operation Pressure (bar) 40
Enquire NowDownload Brochure
SDQ10H
Operating weight (kg) 970
Applicable Carrier (ton) 27~30
Applicable pin distance (mm) 490~545
Oil Flow (l/min) 10~20
Operation Pressure (bar) 40~380
Enquire NowDownload Brochure
SDQ1H7
Operating weight (kg) 1170
Applicable Carrier (ton) 30
Applicable pin distance (mm) 530~610
Oil Flow (l/min) 10~20
Operation Pressure (bar) 40~380
Enquire NowDownload Brochure
