SOOSAN quick couplers enable quick change of attachments and tools on a variety of earthmoving equipment and machinery. HPE Africa supplies a wide range of SOOSAN quick coupler models. View below.
SOOSAN Quick Couplers
Models
| SDQ02P | |
|---|---|
| Applicable Carrier (ton) | 3~5 |
| Applicable pin distance (mm) | 230~280 |
| Oil Flow (l/min) | 10~20 |
| Operation Pressure (bar) | 40 |

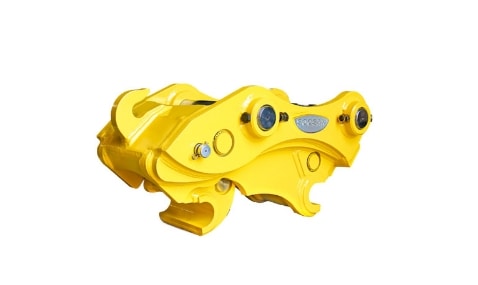

| SDQ06P | |
|---|---|
| Applicable Carrier (ton) | 7~15 |
| Applicable pin distance (mm) | 380~420 |
| Oil Flow (l/min) | 10~20 |
| Operation Pressure (bar) | 40 |
| SDQ08P | |
|---|---|
| Applicable Carrier (ton) | 18~26 |
| Applicable pin distance (mm) | 455~485 |
| Oil Flow (l/min) | 10~20 |
| Operation Pressure (bar) | 40 |
| SDQ10H | |
|---|---|
| Applicable Carrier (ton) | 27~30 |
| Applicable pin distance (mm) | 490~545 |
| Oil Flow (l/min) | 10~20 |
| Operation Pressure (bar) | 40~380 |

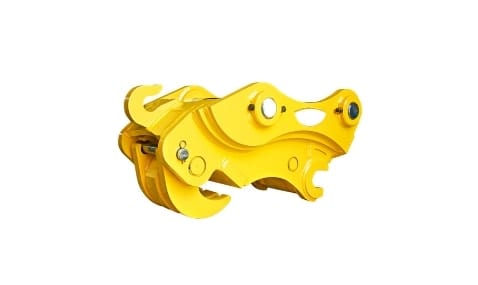

| SDQ17H | |
|---|---|
| Applicable Carrier (ton) | 30 ↑ |
| Applicable pin distance (mm) | 530~610 |
| Oil Flow (l/min) | 10~20 |
| Operation Pressure (bar) | 40~380 |
